| Function | Range | Accuracy |
| DC Voltage | 600mV~999.9V | (0.5%+3) |
| AC Voltage | 600mV~999.9V | (0.8%+5) |
| DC Current | 20mA~10A | (1.0%+5) |
| AC Current | 20mA~10A | (1.0%+8) |
| Resistance | 999.9Ω~99.99MΩ | (0.8%+3) |
| Capacitance | 9.999nF | (10.0%+40) |
| Capacitance | 999.9nF~99.99mF | (2.5%+20) |
| Frequency | 40Hz~1000Hz | (1%+5) |
| Frequency | 1MHz/20MHz | (0,8%+15) |
| Temperature | -20~1000℃ | (1.0%+3) |
| Temperature | 0~ 1832℉ | (1.0%+3) |
| Product Size | 19*15*7 cm |
| Color | Green |
| Material | Plastic |
| Product Weight | 0.5kg |

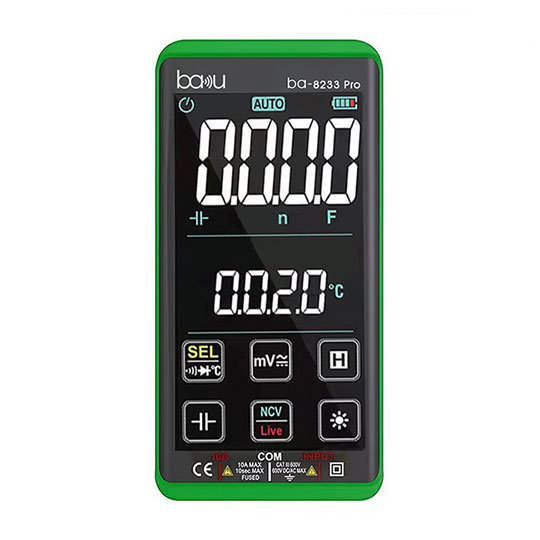

The BA-8233 Pro supports multiple measurement functions such as voltage, current (AC/DC), resistance, capacitance, frequency, diode and continuity test, and can easily cope with various application scenarios such as home maintenance, electrical inspection, and electronic equipment testing.

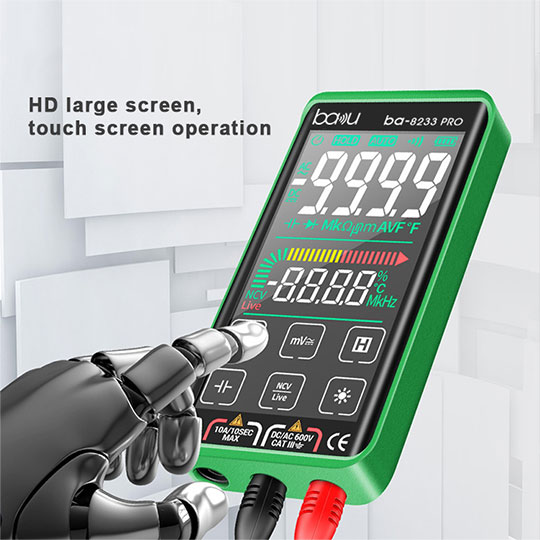

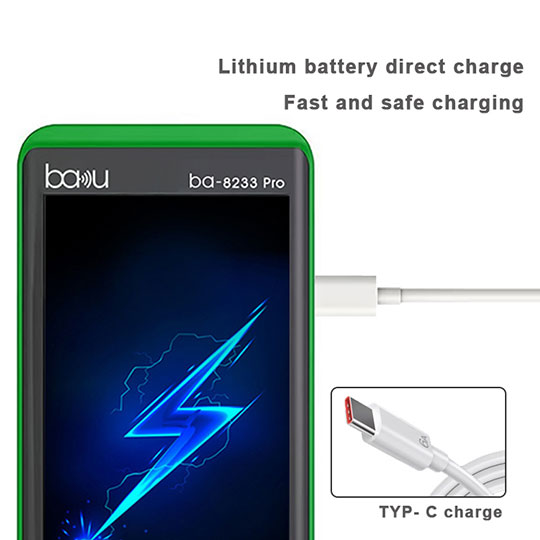

It is equipped with a high-definition touch screen interface, which can complete function switching and parameter selection with a touch, making every measurement more efficient and convenient. In addition, the multimeter has a built-in high-capacity lithium battery, uses a USB-C interface for charging, and supports fast charging technology, which greatly reduces waiting time and improves work efficiency.
