  • LCD Separator Machine ba-960


  • Model: ba-960
  • Product name: 3 in 1 LCD+Bezel frame Separator machine
  • Voltage: 220-240 V / 110-140 V
  • Power(W): 400 W
  • Certification: CE Certificated , FCC
  • Color: Black+Golden oxide
  • QC: Strictly test one by one
  • material: Metal + Aluminum alloy
  • Type: specially for Samsung
  • Dimension(L*W*H): 390*290*215 MM(Weight: 7.5 KG )
  • Function: lcd separator,middle frame separator






Screen&LCD Disassembly Machine ba-960 (1).jpg


1.This Frame separate machine with durable metal shell and build in vacuum pump is used for separating LCD screen glass and sepecial for frame for Samsung mobile phone.
2.As for current popular smartphones are made of display assembly. So the glass lens, touch screen and LCD are connected together, it is difficult to separate cracked or broken screen by hand if you need to replace them. Sometimes you have no choice but to replace the whole LCD screen digitizers. Our Frame separate machine is designed for helping you to solve your problems , saving your precious time and make your repairing job more efficient.
3.It can separate all touch screens with at max 7 inches from the LCD screens digitizers by correct operation
4. the model in the left is for LCD separating for Samsung S1 S2 S3 S4 S5, the right one is for Samsung Note 1 2 3 4, you can separate 2 different LCDs at the same time
5. Temperature should be set to 80 centigrade to 100 centigrade
6.easy to operate, can provide operation instruction,picture and vedio for new user
7. 1set including( machine, power wire, mat, package,other can be choosed by customer)
Tips: for serious crushed glass, please stick a tape on glass for safety and good for Lcd separator machine


Screen&LCD Disassembly Machine ba-960 (2).jpg

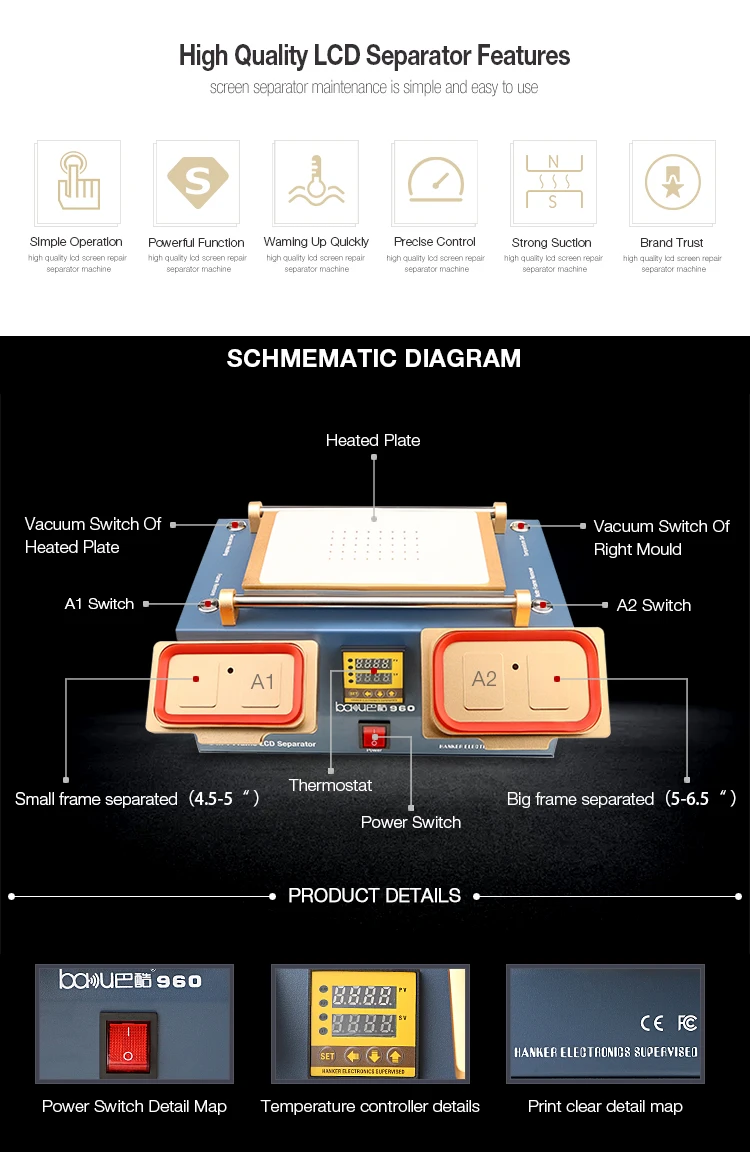

  • This is a 3 in 1 frame separator machine with built-in vacuum pump.Which has the function of middle frame separation and screen separation.
  • Left mould is suitable for 4.5-5 inch.
  • Right mould is suitable for 5-6.5 inch.


Screen&LCD Disassembly Machine ba-960 (3).jpgScreen&LCD Disassembly Machine ba-960 (4).jpgScreen&LCD Disassembly Machine ba-960 (5).jpg
